Manual Swing-Blade Sawmill from Turbosawmill

Our manual Swing-blade sawmill is versatile, simple, and robust. View our options today and then get in touch for a quote, wherever you are in the USA.

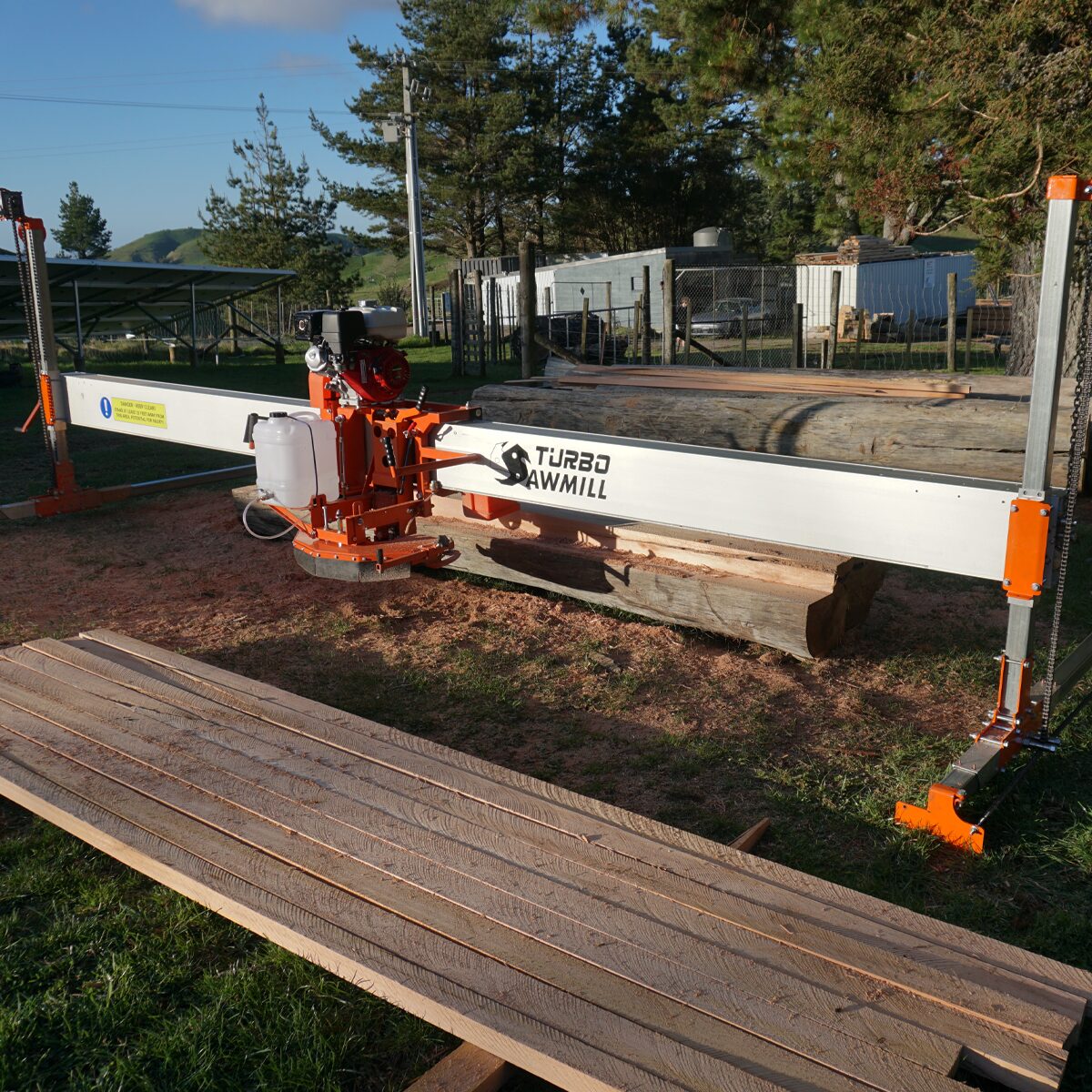

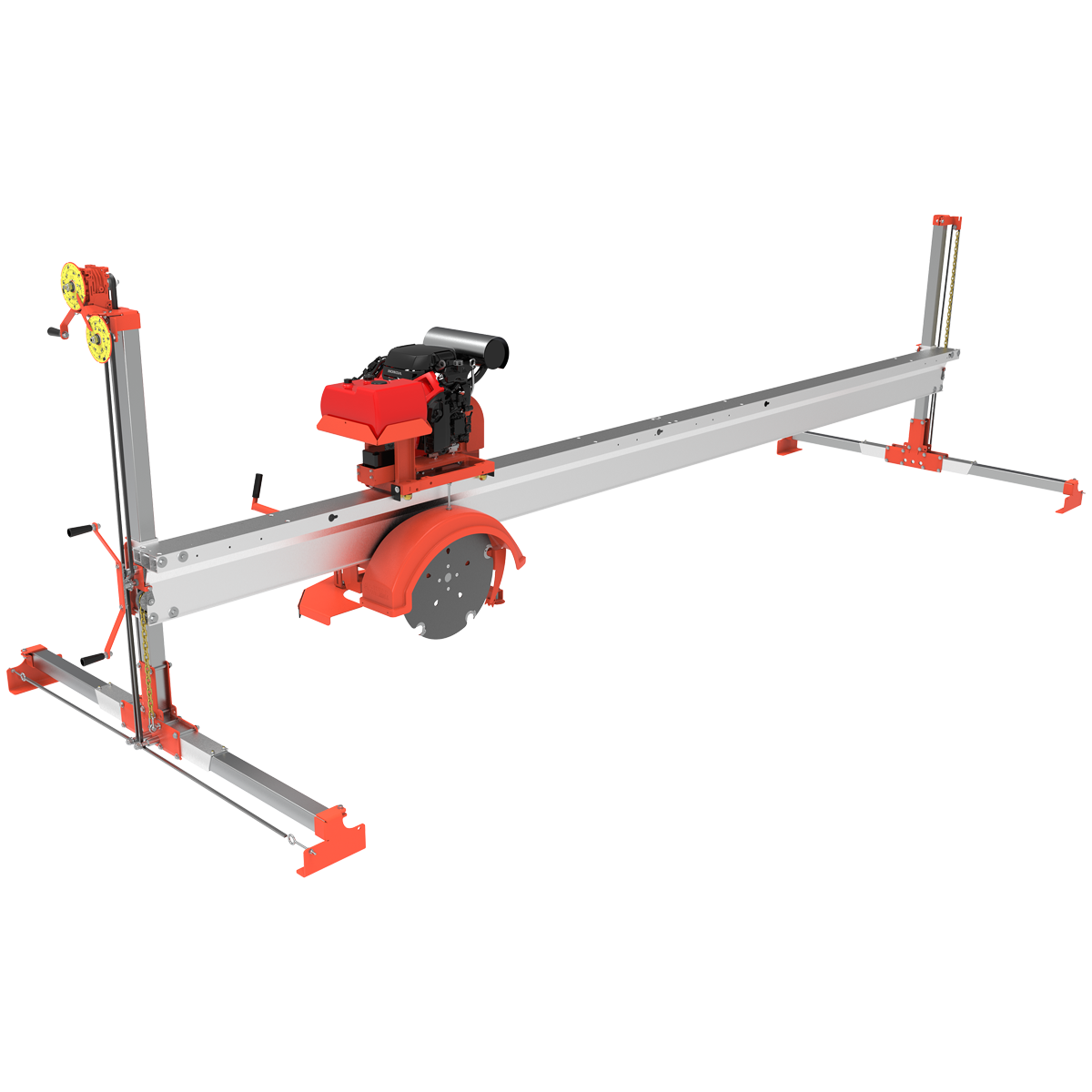

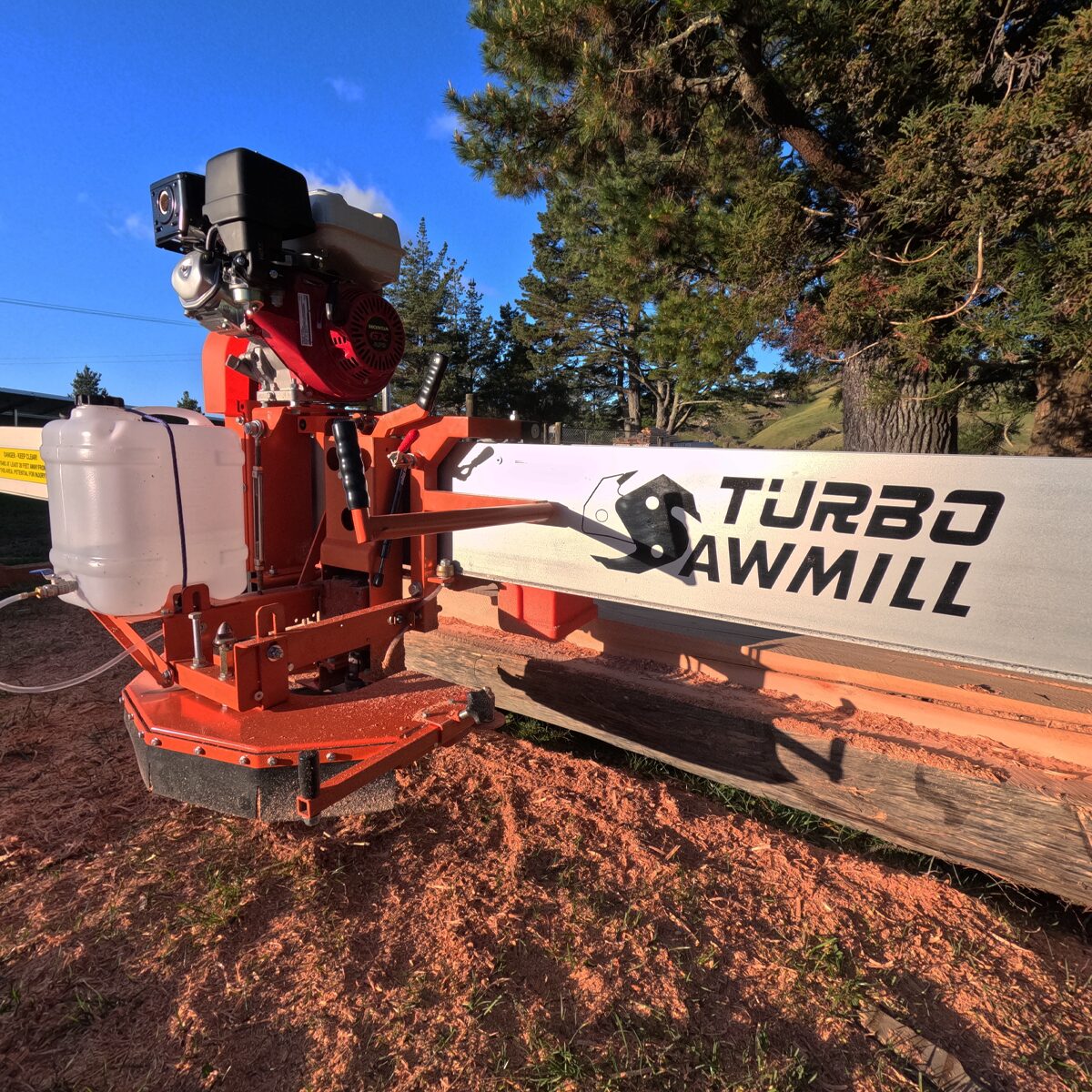

Key features: Manual Swing-Blade Portable Sawmill

Our manual mills are incredibly simple and versatile. The frame is built tough and offers rigid cutting. Our single beam design provides unrestricted access to load logs and recover your lumber (you are not stuck between two tracks).

Sizing is performed at the same end through two reduction gearboxes with large dials for sizing. The gearbox means that you will not rely on preset clicks for every movement, they are infinitely variable.


Although the sizing is all done at one end, you still get the option to adjust for taper at the far end through a hand winch. This is important when first setting up your sawmill over the log, no need to lift and chock the log.

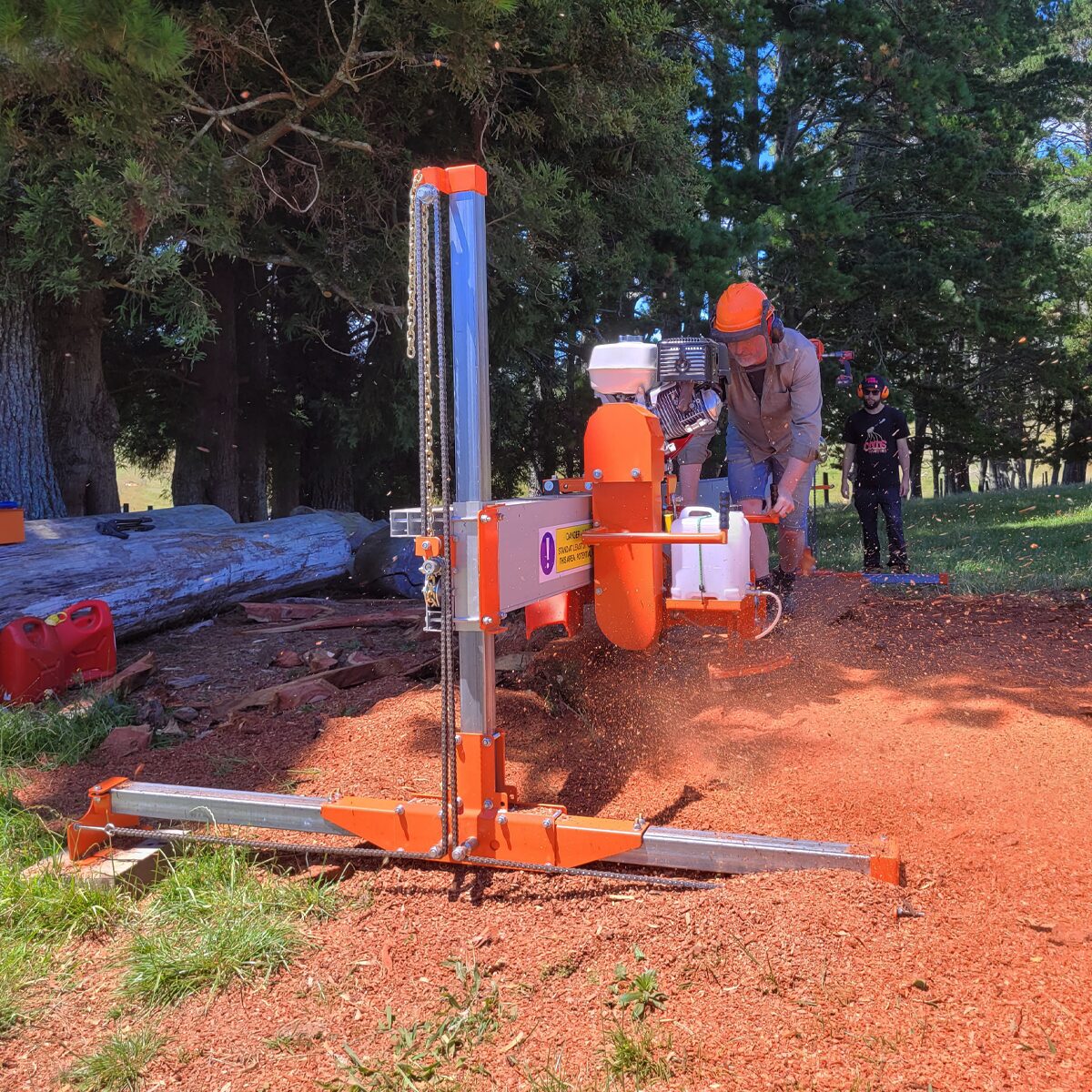

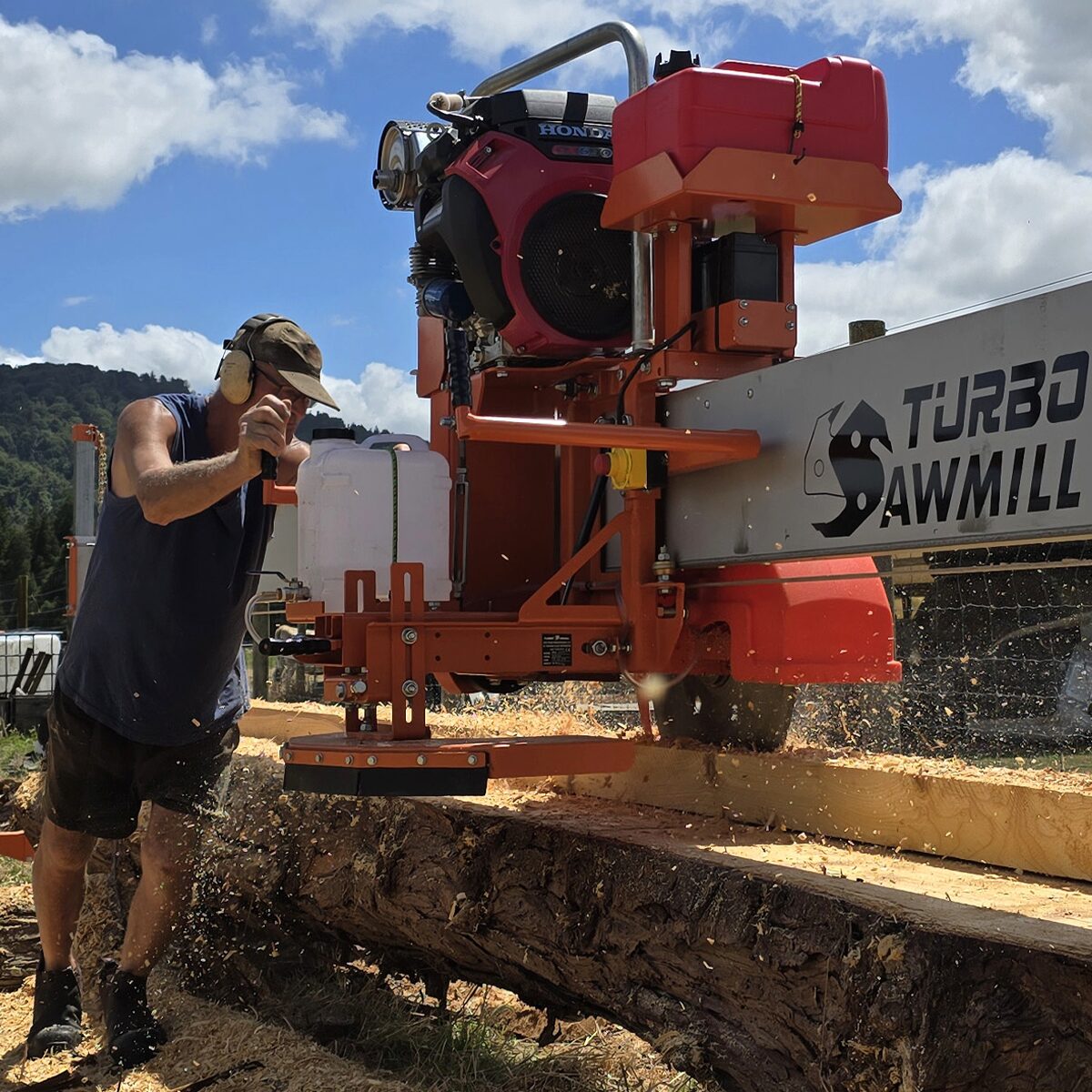

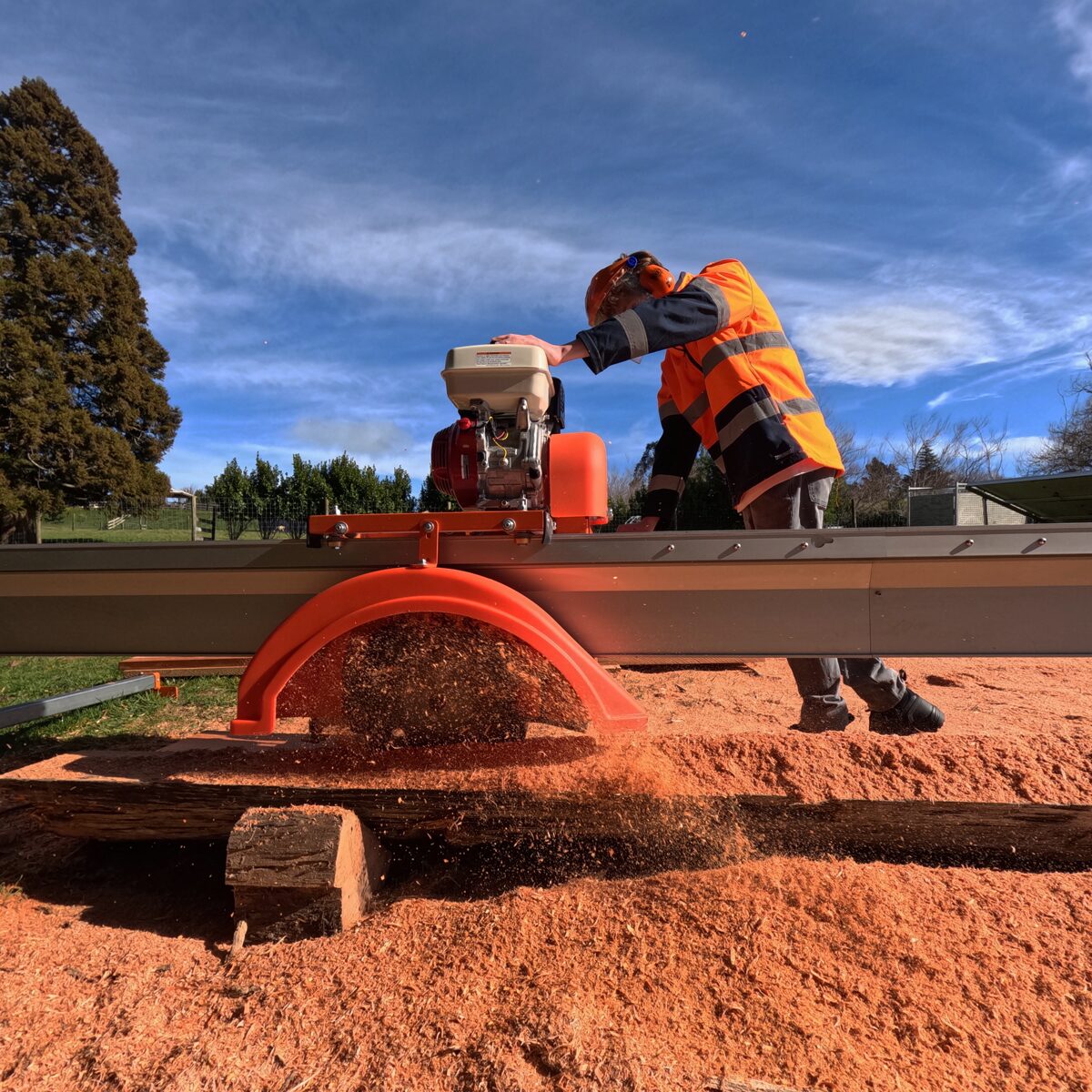

Simply push the mill through the log actuating horizontal and vertical cuts for every board sawn.
The sawmill comes standard with a large ATV dolly system that locates at the middle of your beam. This allows one person to move the mill around with ease. You could also tow it around your farm behind an ATV or similar.

Another feature that comes standard is the weather board attachment device. This accessory allows you to saw tapered boards directly from your log.


    Disassembly (6 assemblies including jockey wheels):

    1. Unbolt the long alloy tube.
    2. Unbolt the operator end frame.
      1. You may use the included jockey wheels to prop up the beam during disassembly.
      2. You may also remove the long base skids of each frame to reduce the weight.
    3. Roll the carriage off the beam onto a pellet in your truck.
    4. To reduce the overall weight of your carriage you may also remove:
      1. Guards.
      2. Blade.
      3. Motor.
    5. Unbolt the far end frame.

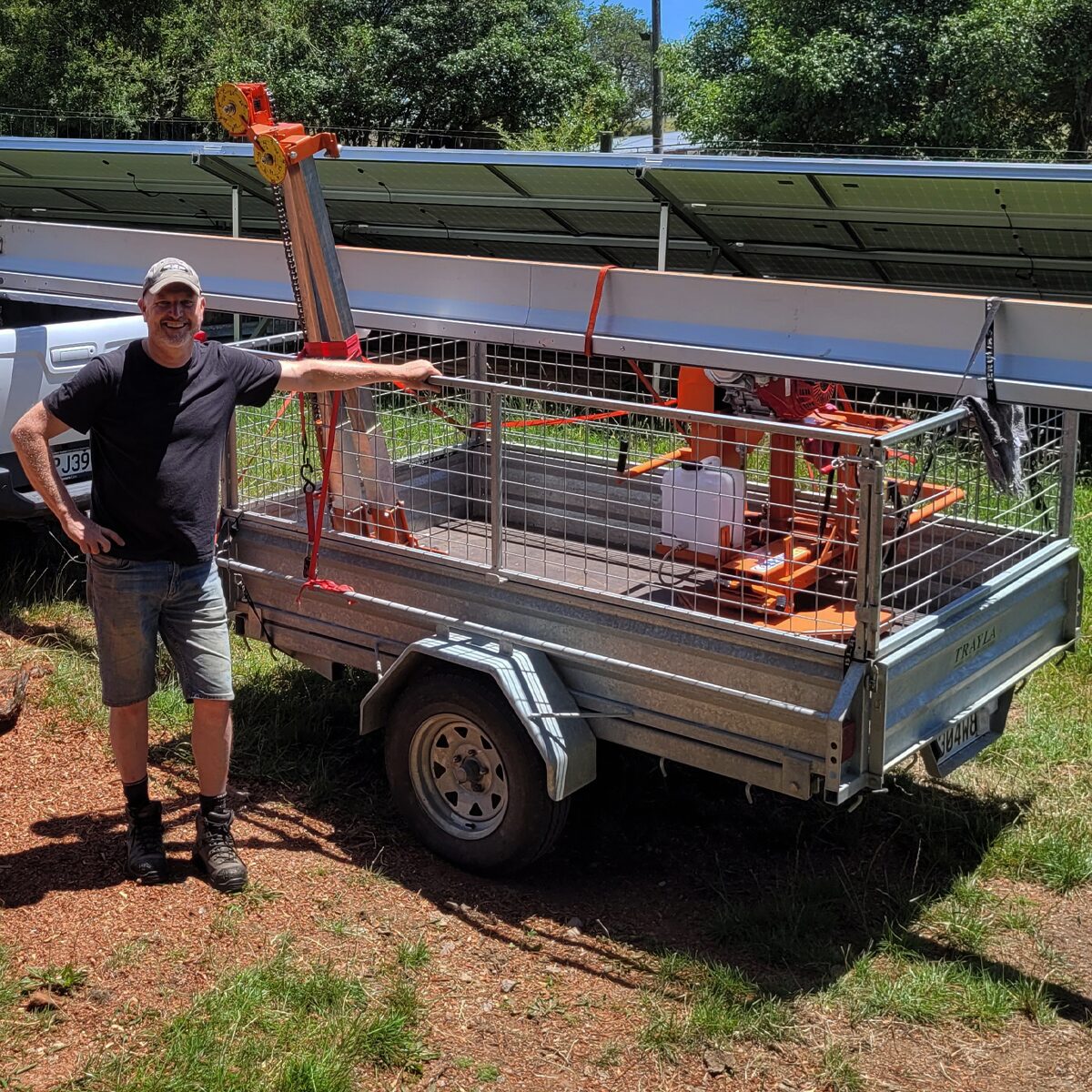

    6. Place the complete beam on your truck’s roof rack or disassemble into pieces for easier transport.

    Mobility (Farm Dolly kit):

    You may also purchase the farm dolly kit as an accessory which means you can simply lower the complete sawmill onto this kit, then install the tow hitch bracket at the end of the beam and within minutes transport your sawmill around your property using your vehicle.

    Includes:

    • Electric start.
    • 1 x 5-tooth INSERT blade, tool, extra tips, and sharpener (requires a drill).
    • Manual feed.
    • Manual blade swing.
    • Single end horizontal and vertical gearbox with sizing dials.
    • Large ATV jockey kit.
    • Weather board swing kit.
    • 2-year warranty on the mill framework.
    • 3-year warranty on the motor.

    Specs:

    • Log setup taper alignment included.
    • 1.2-meter diameter (4 feet) log - although any diameter may be sawn.
    • 4.4-meter (14.5 feet) log cut length.
    • Double cut capable.
      • Produces a double width slab for every drop (no need to swing the frame around).

    Electric options:

    We can custom build your sawmill using a 15hp electric three phase motor. Please send us an email if you are interested in this option. This is a special-order option.

    Watch the manual sawmill in action

    Check out the features of a Turbosawmill manual sawmill, available for delivery across the USA.

    Finance available

    Simple and straight forward process. Please click below to fill out an application form.

    Get Finance

    Accessories available for the Manual Sawmill

    Digital Sizing Kit

    Digital Sizing Kit

    Fits all Turbosawmill models. Runs on single phase power (small generator for remote use). Very accurate system. Includes new function allowing quick and easy sectional deep horizontal/vertical cuts. A great time saver! Available in both Metric and Imperial.

    $10,000 USD

    Email for freight quote.
    DEDICATED SLABBER HEAD

    Dedicated Slabber Head

    Powered by the Honda GXV390 (13hp gross) engine. Cuts up to 1.5m wide slabs and can fit any Turbosawmill product. Shares the beam with the Swing-blade.

    $7,500 USD

    Email for freight quote.
    MANUAL CENTER LEG & 6FT EXTENSION

    Manual Center Leg & 6ft Extension

    6 feet long beam, leg, tongue inserts, tube, clamps and chain extensions.

    $3500 USD

    Email for freight quote.
    FARM DOLLY KIT

    Farm Dolly Kit

    Transport kit to fit all models. Includes dolly and hold-down clamps to connect to your sawmill for easy farm transport.

    $3,000 USD

    Email for freight quote.
    CHAINSAW SLABBER TROLLEY

    Chainsaw Slabber Trolley

    Carriage to fit any Turbosawmill model. Simply bolts on to your Alaskan assembly. Comes with a remote throttle kit. Does not include the Alaskan kit and chainsaw!

    $1,500 USD

    Includes Freight charge.

    MANUAL 6FT EXTENSION

    Manual 6ft Extension

    6 feet long beam, tongue inserts, tube, clamps and chain extensions.

    $1000 USD

    Email for freight quote.
    PLANER BLADE

    Planer Blade

    Planer blade for re-surfacing slabs and beams. Process is done after your product has dried. Provides a finished result.

    $1,050 USD

    Includes Freight charge.

    PLANER BLADE TIP

    Planer Blade Tip

    Planer blade replacement tip. Min 12 units.

    $20 USD

    Includes Freight charge.

    LOGDOGS

    Logdogs

    Secures your log during sawing. Alloy materials to reduce damage to your blade if hit by accident.

    $550 USD

    Includes Freight charge.

    CANTHOOK

    Canthook

    5 feet long handle. Used to roll logs.

    $250 USD

    Includes Freight charge.

    8" INSERT BLADE

    8" Insert Blade

    Turbosawmill insert blade, 5 tooth, 9/32″ kerf. 1 x blade.

    $700 USD

    Includes Freight charge.

    6" INSERT BLADE

    6" Insert Blade

    Turbosawmill insert blade, 5 tooth, 9/32″ kerf. 1 x blade.

    $500 USD

    Includes Freight charge.

    STANDARD 9/32″ BIT

    Standard 9/32″ Bit

    9/32″ KERF, suits all models, includes lock screw. 1 x tip. Min 10 units.

    $11 USD

    Includes Freight charge.

    FINE KERF 1/4" BIT

    Fine Kerf 1/4" Bit

    1/4" KERF, suits all models, includes lock screw. 1 x tip. Min 10 units.

    $15 USD

    Includes Freight charge.

    STANDARD SHANK

    Standard Shank

    13/64″ wide, fits all models. Min 10 units.

    $16 USD

    Includes Freight charge.

    NARROW SHANK

    Narrow Shank

    5/32" wide, fits all models. Offers more clearance and life to your bit. Min 10 units.

    $19 USD

    Includes Freight charge.

    Drive Belt Kit to Suit Honda

    Drive Belt Kit to Suit Honda

    Set of 3 main drive belts to suit the Honda models. V-belt cogged raw edge 62" XPA.

    $150 USD

    Includes Freight charge.

    Carriage Bearing (Large)

    Carriage Bearing (Large)

    Carriage roller bearing (Large) to fit the top corner rail. Min 6 units.

    $10 USD

    Includes Freight charge.

    Plastic Carriage Roller Cowling

    Plastic Carriage Roller Cowling

    Plastic carriage roller which fits over the (Small) bearings. Min 6 units.

    $15 USD

    Includes Freight charge.

    Plastic Roller Assembly

    Plastic Roller Assembly

    Plastic carriage roller assembly. Bearings, middle spacer, circlip and plastic cowling. Min 2 units.

    $46 USD

    Includes Freight charge.

    Gearbox Complete

    Gearbox Complete

    Complete 40hp gearbox to suit the main drive system or the top transmission system.

    $425 USD

    Includes Freight charge.

    Gearbox Bearing Kit

    Gearbox Bearing Kit

    Complete gearbox service kit. Includes bearings and seals.

    $175 USD

    Includes Freight charge.

    Pivot System Gas strut 460nm

    Pivot System Gas strut 460nm

    Strut that actuates assists your swing mechanism. 460nm.

    $100 USD

    Includes Freight charge.

    Sharpening Stone

    Sharpening Stone

    Replacement diamond sharpening wheel. 25/64″ face to suit plastic drill kit.

    $150 USD

    Includes Freight charge.

    Toggle Clamp

    Toggle Clamp

    Replacement toggle clamp to suit your carriage lock system.

    $80 USD

    Includes Freight charge.
